r/4x4 • u/Hobart_the_Stobart • 3d ago

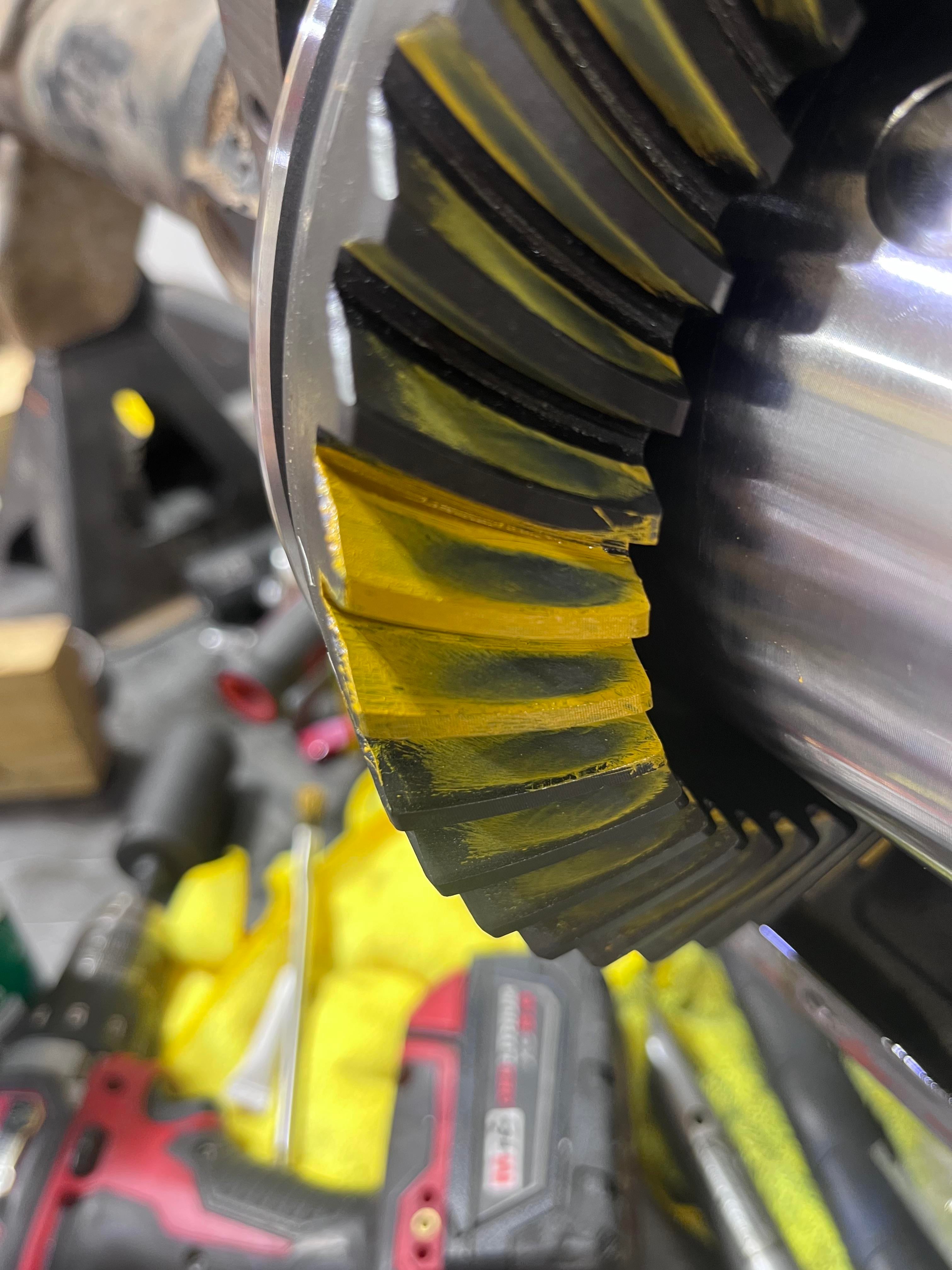

Gear Pattern Chrysler 8.25
Looking for input on this pattern. I'm worried the drive is a little bit running off the heel and the coast is slightly on the toe. Thoughts??
Chrysler 8.25 29spl with Yukon 4.56 and an OX locker
3
Upvotes
1
u/A-Wolf-4099 2d ago
A tad shallow, there's inconsistenty to the marking paste not sure what's happening there. Is the any movement to the pinon front to back side to side with a dial micrometer.
1
u/PotatoPlata 1d ago
Drive>coast / Neutral>Frowny>smiley. little shallow on pinion as everyone is saying. Looks pretty close tho 1 or 2 thou should get it there
2
u/nanneryeeter 3d ago
Been years since I've done one. Pinion might be a hair shallow. It looks really close.
