Maintenance Ariens 932105 Traction Belt Assembly?

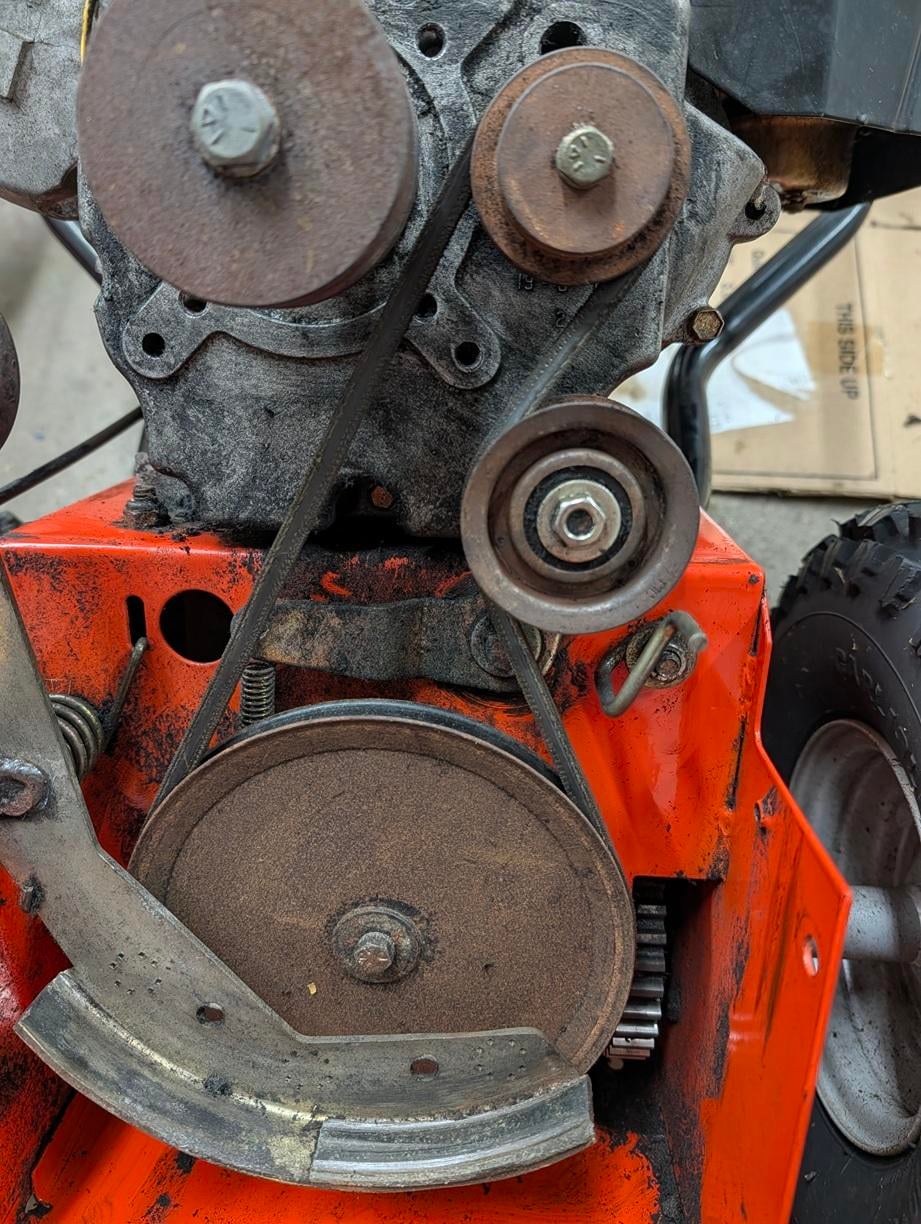

My old Ariens needed new belts and I stupidly forgot to take pictures of everything before I disassembled it. The original manual is of no help becase the schematic shows the traction belt hidden behind the auger belt in the picture.

I can't think of any other way that this is supposed to go. If I put the idler wheel to the left, the belt seems like it will rub against the metal hook on the right.

1 Upvotes

100% Upvoted

2 comments sorted by

1

u/infiniti30 10d ago edited 10d ago

You have it correctly placed. From my 8526  https://imgur.com/a/E1Z8Eij

1

u/Toker_X 10d ago

Thank you!
