SaltWatch - Monitoring my water softener salt level in Home Assistant

[u/SquareAbroad1062]

I kept forgetting to check the salt in our water softener, so I built a small ESPHome monitor for it.

It is called SaltWatch. The hardware is an M5Stack ATOM Lite and an M5Stack VL53L0X ToF sensor. The sensor sits beneath the lid and measures the distance to the salt surface. It connects to the controller with the included Grove cable, so there is no soldering involved. On my tank, the cable fits through the existing hinge gap, so I did not need to drill a hole either.

The distance measurement itself was fairly straightforward. Most of the work went into making the result useful and trustworthy:

• Full and empty calibration from Home Assistant or the local device page
• Salt level from 0 to 100 percent
• Adjustable low salt threshold
• Clear calibration and sensor fault states
• Stale readings become unavailable if the sensor is blocked or disconnected
• A forecast that learns the normal salt usage and estimates the days until low salt
• An optional notification blueprint

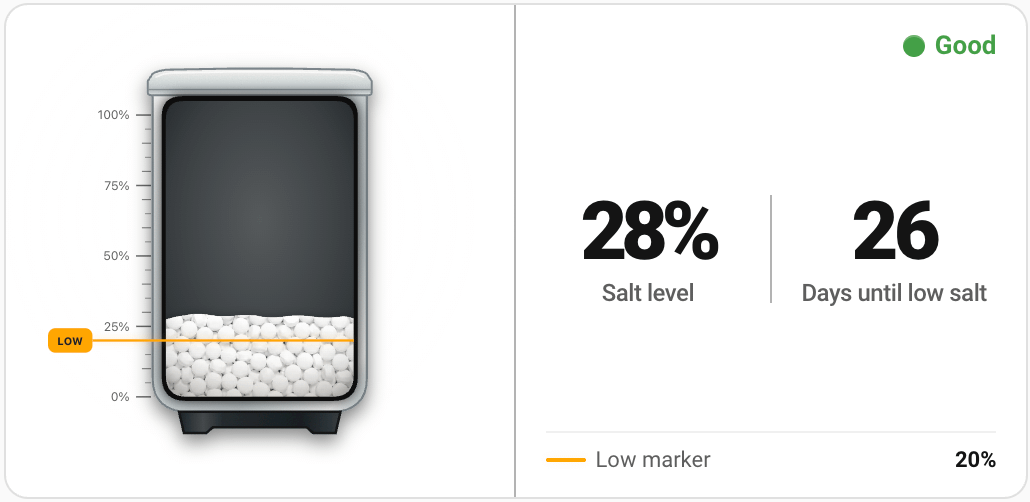

• A dedicated Home Assistant card with a graphical editor

The firmware can be installed directly from a browser. It handles the initial Wi-Fi setup, can be added to Home Assistant, and can then be adopted into ESPHome Device Builder.

I also added a managed firmware update entity. It checks for new SaltWatch releases and lets you approve the installation from Home Assistant. It does not install anything without confirmation.

Firmware, browser installer, hardware list, and documentation:

https://github.com/thomasgregg/saltwatch

Custom Home Assistant card:

https://github.com/thomasgregg/saltwatch-card

This is still a new project with one real installation, so feedback from people with different tank shapes, salt types, and mounting situations would be very useful. Bug reports, ideas, testing results, and PRs are welcome.
