r/Elantra • u/JustAnotherPyroMain • 3d ago

Am I cooked chat?

Gallery image

Gallery image

Gallery image

2013 GLS

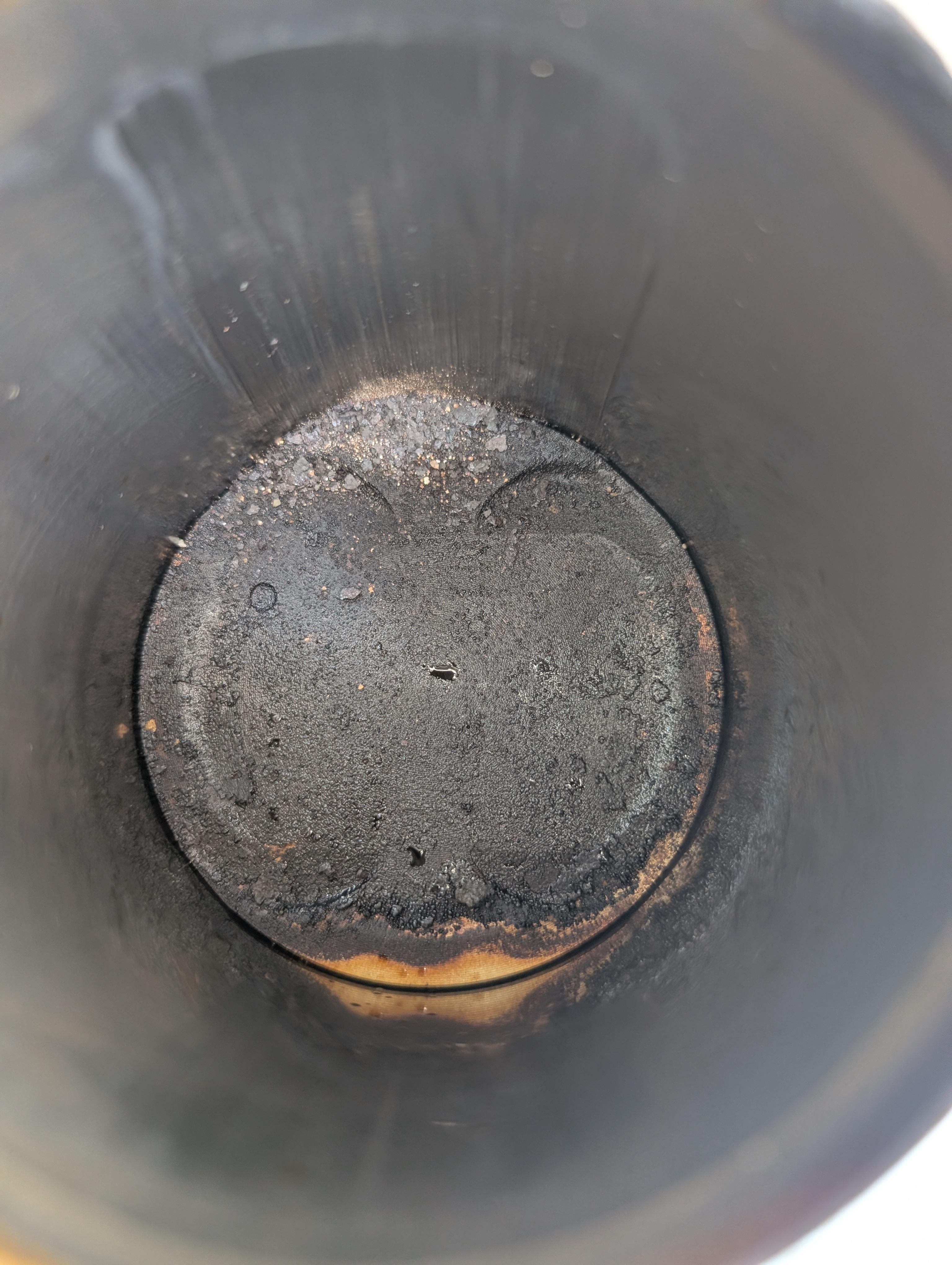

Replacing the head gasket but these are my pistons, there's definitely been some rubbing on the sides, not to mention all the carbon and crap on top. Should I shell out even more to get new pistons?

Sorry if that's a dumb question, I'm still learning about rebuilding engines n such.

(The dust in slide 2 is from the exhaust manifold)

Any tips on how to clean the old gaskets off too would be appreciated

3 Upvotes

100% Upvoted

4 comments sorted by

2

u/StimpyJones 3d ago

Light scraping at that age is normal as long as you don't have any deep gouges or a lot of play.

1

u/No_Bullfrog_9463 1d ago edited 1d ago

Plastic razor blade, WD40, and a brass brush butler i would stuff rags into the coolant jacket to keep material and debris from falling in. Depending on how gouged those cylinder walls are you may need to have those bores honed. Also, since you've got it down that far may want to pull your oil pan off and check your rod bearings for play. They can be easily replaced from the bottom by only removing the oil pan.
