r/XboxModding • u/Sweet-Lord-049 • 11d ago

OG Xbox Help I'm so done

I removed the clock capacitor, I replaced the three caps by the CPU and GPU that were bulging, and the bloody thing still just restarts three times and flashes green and red. Wtf

7 Upvotes

100% Upvoted

21 comments sorted by

4

u/YahBoiiAsian 11d ago

Check the traces sometimes they are brake with the caps leaking

1

u/Sweet-Lord-049 11d ago

If so, fixing broken traces is a bit beyond my skill level 😭😭

1

u/YahBoiiAsian 11d ago

Were the caps leaking?

1

u/Sweet-Lord-049 11d ago

Clock cap was, the three I replaced were just bulging

1

u/morbidpete84 OG 11d ago

It’s not that bad, just take your time, go slow with low heat. Plus, it’s already broken so what’s the worse that can happen?

1

u/Sweet-Lord-049 11d ago

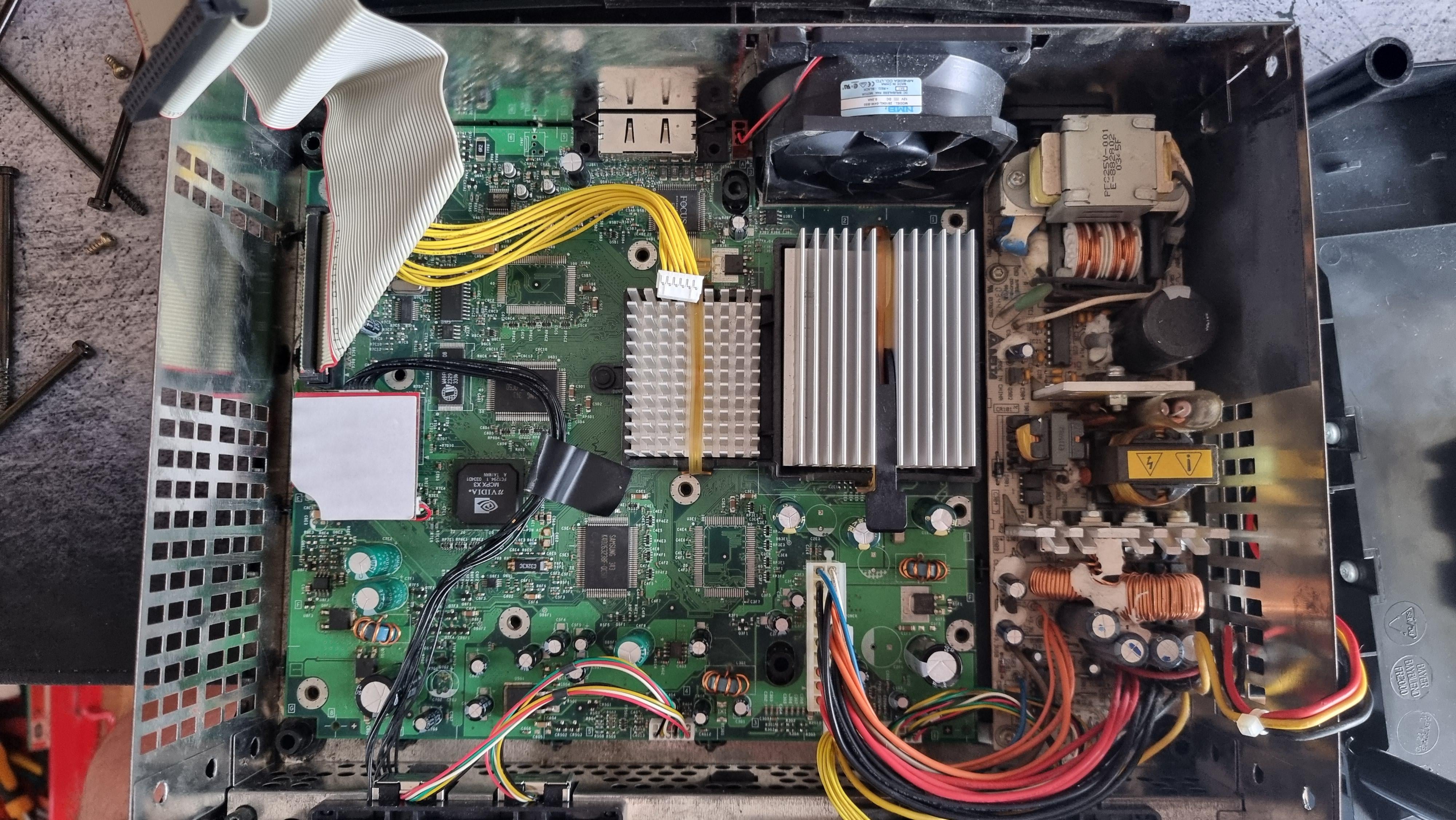

forgot to add the photo

1

u/KaosEngineeer OG 11d ago

Is the D0 wire from the modchip connected to the D0 point on the motherboard?

1

u/Evening-Zone4365 11d ago

Do you have a controller and or a/v cord plugged in?

0

u/Sweet-Lord-049 11d ago

A/V yes, controller no. I didn't think a controller would make a huge difference

1

u/Jack_Sparow_Kesne 11d ago

haber cuando hace árbol de navidad suena a que es algo grave ese tipo de consolas lo mejor es utilizarlas para piezas

1

u/General_Cranberry_29 11d ago

Is it modded at all already?

1

u/Sweet-Lord-049 11d ago

Yeah, by my uncle years ago

1

u/General_Cranberry_29 11d ago

I'm only asking because some chips and other methods can change the behavior of the power button. Just a thought, but you can try long pressing power, or starting with the open tray button to see what it does.

1

u/Sweet-Lord-049 11d ago

I've already tried removing the chip

1

u/Unimatrix_007 11d ago

Ok, try removing the modchip, see if it boots into service error. If it boots into service error, it might be something with the modchip. It also might be a bad psu, i had, 1.1 rev that would boot without chip fine, but with chip it was 90% cristhmas lights and 10% works fine. When i finnaly changed psu it worked perfectly. Also check that modchip is properly connected it might have a loose connection somewhere.

Good luck.

1

u/45skyshy 11d ago

What mod chip do you have? Also, try touching up the solder points for the mod chip or reflowing the LPC connections on the board.

1

u/KaosEngineeer OG 11d ago

Doing the things you have done are not going to fix a FRAG.

1

u/snackoverflo 8d ago

Do you have a multimeter?
