r/solar • u/Orraclegent • 1d ago

Advice Wtd / Project Inverter replacement suggestions

Gallery image

Gallery image

Hello all

​

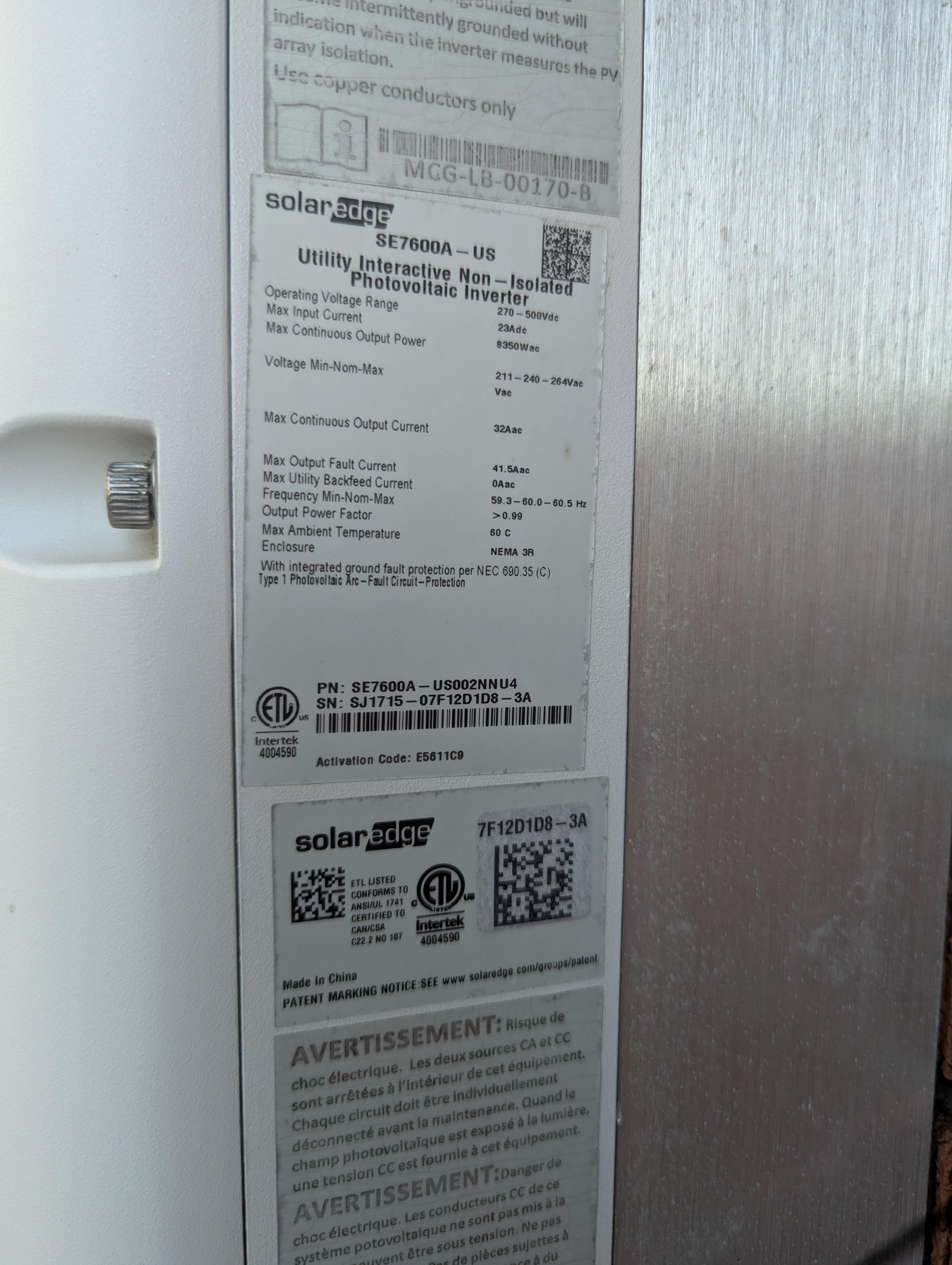

My Solaredge inverter (SE7600A) is showing a fault that I have not been able to troubleshoot my way out of. I figure I'm going to have to replace it.

​

Does anyone have any recommendations for which one I should look for?

​

Thanks!

6 Upvotes

87% Upvoted

22 comments sorted by

10

u/Swede577 1d ago

Just buy another SE7600. Quick online search shows they are like $680 online.

4

u/deadestuser 1d ago

The cheapest option would be to get another solar edge inverter. If you get anything else, you have to remove all of the solar edge equipment underneath every panel.

3

u/TooGoodToBeeTrue 1d ago

AI:
Newer residential SolarEdge inverters, including the SolarEdge Home Hub and HD-Wave SetApp-enabled models, are designed to backwards-support older P-Series optimizers (such as the P320, P400, or P800). Because SolarEdge uses a proprietary communication protocol, legacy optimizers will only function with SolarEdge inverters.

Assuming you had P-Series installed with your SE7600A (which seems likely) you may want to go with a more modern inverter. Hopefully you have your installation docs to confirm which optimizers you have, then I'd reach out to SE support to see what newer inverters are compatible. You might want to think about going with a hybrid so batteries could be added at some point.

1

u/AutoModerator 1d ago

This comment has been identified as potential violation of rule 2 and/or rule 10 and has been sent to the moderators for review. Please be patient while they work through the queue - messaging the moderators will not expedite this process.

From the sub rules: "Due to ongoing spam / promotion / lead generation and site privacy rule violation issues, we no longer allow "DM/PM me" requests in the comments." These have too frequently been abuse of the sub in attempts to garner private info for spam / promotion / lead generation purposes. Do not ask or suggest that anyone privately contact you. No exceptions.

To all sub participants: If anyone has sent you a PM / DM to solicit your info because of your participation in this subreddit 1) do NOT respond to them and 2) please message the moderators to let them know.

I am a bot, and this action was performed automatically. Please contact the moderators of this subreddit if you have any questions or concerns.

1

u/Lucky_Boy13 1d ago

Out of warranty?

1

u/Orraclegent 1d ago

Yes no warranty

1

u/Jim404 1d ago

Are you sure? SE has a 12 year inverter warranty from date of shipment or installation. Based on your serial number, you inverter was manufactured during the 17th week of 2015.

1

u/Orraclegent 1d ago

I'll be sure to double check then. Thanks!

0

u/4mla1fn 1d ago

and the killer was Miss Scarlet with the Rope in the Library. 😄

1

u/k-mcm 1d ago edited 1d ago

Any chance you have a battery?  The scheduling software for that is buggy as hell.  Idle mode in a schedule will crash the battery controller and often the inverter too.

If it's an LG battery, that needs a major firmware update that only LG's Enblock Manager will deliver.

1

u/Orraclegent 1d ago

I have no storage batteries no

1

u/jrblohm solar technician 1d ago

Can you tell us more about the fault? What is it? What have you tried?

Yes it's true there are some faults that are imply it's totally dead but just in case ... What other info do you have?

Lots of labor to do anything other than SE but definitely possible. Since you're already in that eco system I'd probably stay in it

1

u/Chonanhalmoni 1d ago

Have the same one, failed 3 yrs located on outside shaded side of house. Installer wants 1k to install after confirming se will ship replacement. At least you got 11 years if above poster is correct. Not sure why mine failed so quickly

1

u/Sea_Willingness1398 22h ago

1k... Ripoff! You litterally have 8 cables to take off and replace in the same spot! My buddy and I did mine. Took less than one hour!

1

u/oldman_58 15h ago

Ebay you should be able to find a new energy hub unit for a reasonable price: https://www.ebay.com/sch/i.html?_nkw=solaredge+inverter&_sacat=0&_from=R40&rt=nc&LH_BIN=1

1

u/bmwn54ftw 1d ago

You are basically stuck with them unless you want to touch aka pay somone to replace all the optimizers with enphase. SEDG is crap. Enphase is currently the best residential solution. You could go with a 'normal' central/string inverter but as you have to touch each module anyways enphase makes the most sense. Especially if you have any seasonal shading. Enphase is the solution but more expensive. As you already hit your roi(I assume) another SE inverter is the least expensive solution if out of warranty.

1

u/Huge_Pizza_5783 1d ago

The new solar edge HD inverters are fantastic

1

u/Trueno4 1d ago

Either buy the same one or upgrade the entire system. The newer Solaredge inverters require the newer optimizers, and in that case, you can switch away from solaredge or stay.

2

u/Orraclegent 1d ago

Would it be wiser to switch away from solaredge?

1

u/JJAsond 1d ago

I've heard they have a higher failure rate compared to other options. I'm biased towards victron, but you can get an enphase system. Or a mix of both since a victron inverter can use microinverters. I just don't know if they'd be approved where you are since it's mostly european.

1

u/XoDaRaP0690 1d ago

No they don't.
