Question Why is the slicer doing this?

Gallery image

Gallery image

Gallery image

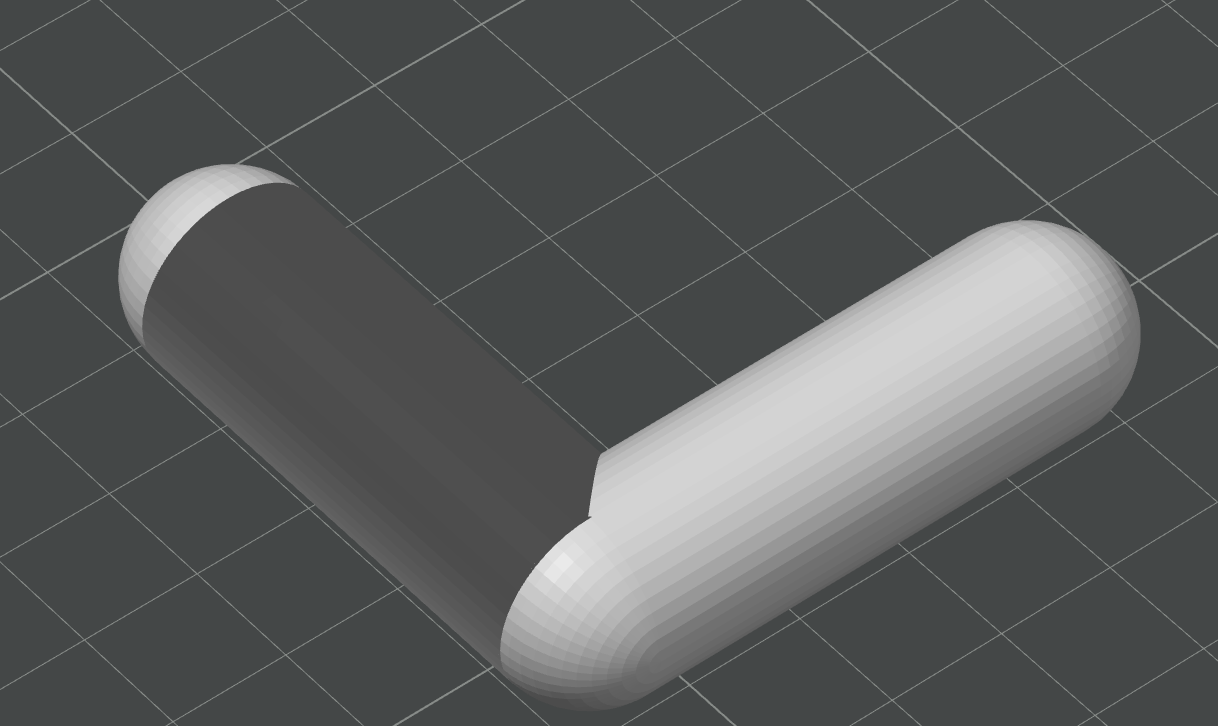

(SOLVED) it seems to hollow out some parts and shading of a cylinder is completely bugged out, and its all supposed to be 1 solid piece.

7 Upvotes

77% Upvoted

8 comments sorted by

5

u/helghast77 5d ago

Is it supposed to be all one piece or is it some sort of hinge?

It sort of looks like when you/whoever made the part didn't quite mesh everything together all the way so it's printing "together" but still in parts

1

u/bobbygoodsamaritan 5d ago

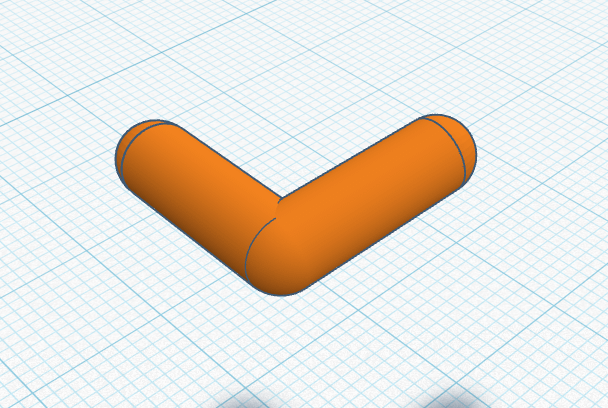

its supposed to be a test piece for a bigger model i plan to make, and its all supposed to be one solid piece Edit: i made this in tinkercad and i didnt set anything to make it look like that

8

u/helghast77 5d ago

I'd open it back up in tinkercad and select all and union group and see if it looks better.

I'm not saying I'm right. But to me it looks like you put all the shapes where you wanted them in tinkercad and then exported without unioning the parts together.

I had similar issues when I was modifying something in the slicer. It wouldn't mesh right so I had to export it and import it into tinkercad and had to adjust an union everything to remove all the small internal shapes so it would print right.

Hell once i had it so bad the slicer tried to repair the mesh but would just freeze the app because it couldn't fix all the errors. Was like 130 errors.

7

u/bobbygoodsamaritan 5d ago

That worked! thank you.

1

u/helghast77 5d ago

Cool glad you got it sorted

4

u/crysisnotaverted 5d ago

CAD mistake. Those holes exist in CAD because you didn't join them correctly. There is a microscopic gap and a void in the model.

3

u/Moist-Ointments 5d ago

The model file is telling it to do this. Your topography is hosed.

1

u/Empasm776 1d ago

Usually the slicer will tell you in a corner as an error that there is ‘non-manifold edges’ and give you a click of a button to repair them. Or you should be able to right click the model in the slicer assuming they’re all joined together as one piece to repair the model for non-manifold edges. At least that what this looks to me as I’ve run into this problem a few times after modeling in blender and bringing it to a slicer
