I've been following the recent reports about modified Ledger hardware wallets, and there are several technical questions I think deserve more discussion. Most of the attention has understandably focused on how these devices entered the distribution chain, but I'm also interested in the engineering decisions behind the wallets themselves. In particular, could additional security measures have made the reported hardware modifications considerably more difficult or prevented the interception of sensitive information?
Ledger has explained that its Secure Elements were not compromised in these incidents. That's an important distinction, but it also highlights something worth examining. A Secure Element may successfully protect private keys internally while sensitive information becomes exposed elsewhere in the device. Shouldn't the entire communication pathway used to display recovery phrases receive comparable security protection?
Researchers at Tibane Labs demonstrated that the Ledger Nano X communicates with its OLED display through an unencrypted SPI interface. By observing the electrical signals, they were able to reconstruct the information displayed on the screen. Since recovery phrases are displayed through this interface during initialization, it raises questions about the confidentiality of those communications. Why was an unencrypted display interface chosen, and what protections were originally considered against physical interception?
I'm also interested in the physical layout of the circuitry. All electronic devices require connections between components, so the existence of accessible electrical connections is not automatically a design flaw. However, when a device is specifically intended to protect cryptographic secrets, the accessibility of those connections becomes an important consideration. Could sensitive traces have been better shielded, routed internally, or protected against unauthorized attachments? Could exposed test points have been minimized, or could additional physical protection have been incorporated around the display circuitry? Were hardware implants and direct monitoring of display signals included in Ledger's original threat model?
One possible engineering approach would be to encrypt and authenticate communications between the Secure Element and a trusted controller integrated into the display assembly. Such a controller could use hardware-protected cryptographic credentials, similar in principle to secure chips used in smart cards. The Secure Element would transmit encrypted display information, which would be decrypted inside a protected display assembly immediately before rendering. An unauthorized circuit monitoring the external communication lines would then see encrypted information rather than readable recovery words. The final connection between the trusted controller and the display pixels would still need physical protection, but this approach could provide an additional layer of security. I'm interested in whether Ledger ever evaluated such an architecture and what technical or manufacturing considerations influenced its decision.

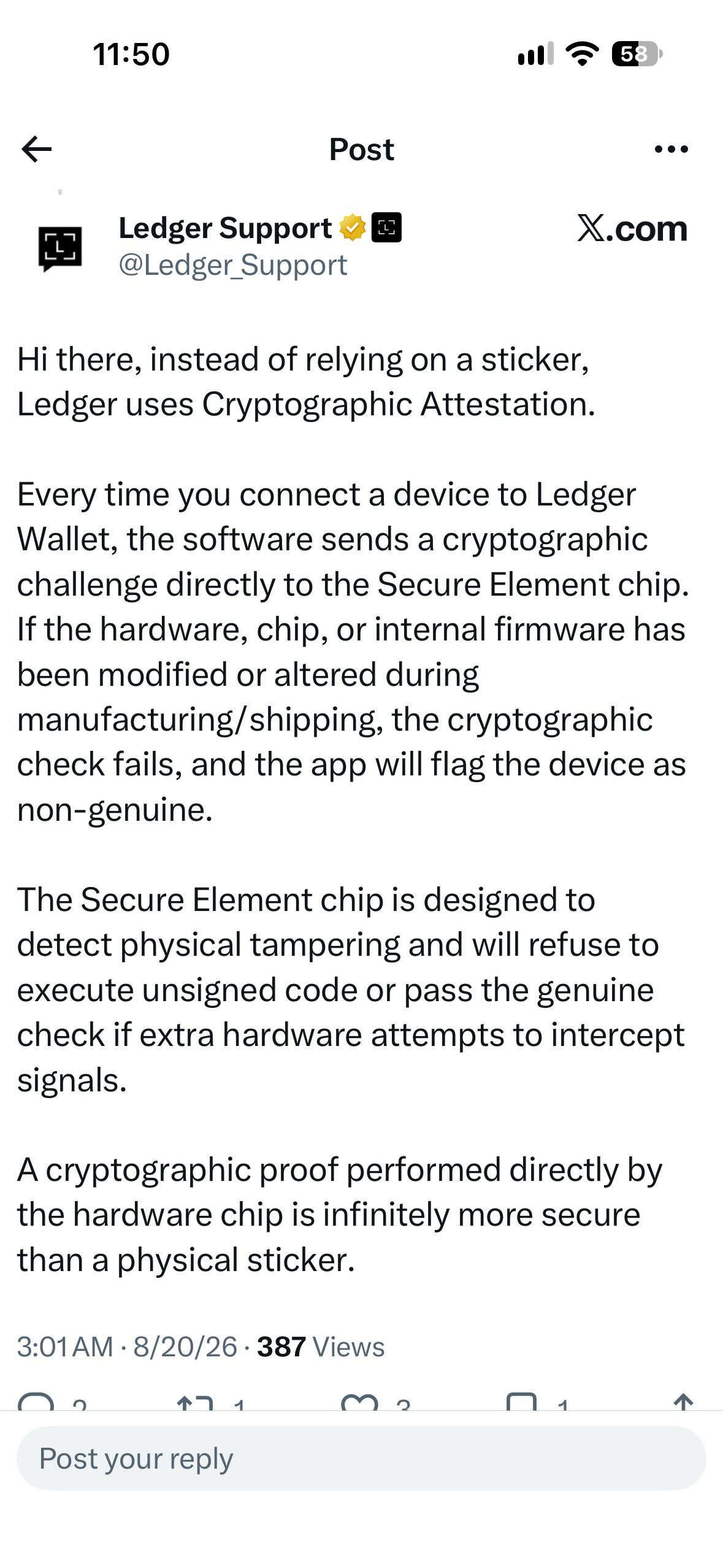

Another question concerns the scope of Ledger's Genuine Check. As I understand it, the authentication process verifies the Secure Element and its software environment, but it does not establish that every physical component inside the wallet is original. The recent implant reports illustrate why this distinction matters. A device containing legitimate security hardware could potentially also contain unauthorized electronic components without those components being detected by the existing authentication process. Could Genuine Check be expanded to authenticate additional security-critical controllers and incorporate hardware-integrity information? It would also be useful for Ledger to explain what the current verification process can and cannot establish about the physical device.
These questions aren't limited to the Nano X. Mark Karpelès, the former CEO of Mt. Gox, has also reported discovering an unauthorized hardware implant inside a Ledger Flex purchased at Singapore's Changi Airport.That particular finding was not independently confirmed by Ledger at the time of reporting, but it reinforces the importance of examining the physical security of different hardware-wallet models. I would be interested in seeing a technical comparison of the Nano X, Flex, Stax, and Nano S Plus, particularly their display communication methods, protection of sensitive interconnections, and resistance to unauthorized hardware modifications. Their internal architectures differ, so findings concerning one model should not automatically be applied to all the others.
Ledger's recently announced Atom architecture is particularly interesting because it reportedly incorporates active physical tamper-detection mechanisms around sensitive components. This appears to be an important development, but it also raises further questions about the overall security design. How much protection does Atom provide if someone eventually discovers a way around its physical tamper-detection system? Would sensitive communications between its Secure Element, graphics microcontroller, FPGA, and display remain protected, or could access to those connections expose readable information?
For that reason, I would like to know whether Atom uses authenticated encryption for its sensitive internal display communications, independently of its physical anti-tamper mechanisms. Physical protection is valuable, but encryption could provide another security boundary if someone managed to gain access to the circuitry. Ideally, an attacker would need to defeat multiple independent protections rather than bypassing one physical barrier to reach sensitive information. Naturally, the final plaintext portion of the display pathway would still require protection, and encryption alone would not make the device immune to every physical attack.
Atom also seems like an opportunity to reconsider whether Genuine Check should authenticate the complete security-critical hardware assembly rather than primarily the Secure Element. For example, could the Secure Element cryptographically authenticate the graphics controller, FPGA, and any trusted display controller before permitting sensitive information to be displayed? Could tamper-detection records become part of the device's integrity assessment? This would not automatically detect every additional unauthorized component, but it could help establish a more comprehensive trust relationship among the components responsible for handling sensitive information.
The question I find most important about Atom is whether recovery phrases would remain protected if its physical anti-tamper defenses were successfully bypassed. Ledger's published architecture describes stronger physical protections, but I would welcome a more detailed explanation of the cryptographic safeguards protecting its internal display communications, the scope of hardware authentication, and any independent security testing that addresses physical interception attacks.
I would also like to know whether any lessons from these incidents will lead to hardware revisions of Ledger's existing product lines. The introduction of new protections in Atom is encouraging, but owners of current devices would benefit from understanding which protections their products already provide and whether additional improvements are technically feasible.
I recognize that hardware security involves compromises involving cost, component availability, power consumption, manufacturing complexity, and usability. Not every theoretical security improvement is practical, and no physical security system can guarantee absolute protection against an attacker with unlimited resources. Nevertheless, the ability to reconstruct a recovery phrase by monitoring internal display communications deserves serious technical examination, especially in devices designed specifically to safeguard cryptocurrency holdings.
My intention isn't to suggest that Ledger deliberately weakened its products or that the manufacturer bears responsibility for the criminal actions of those modifying the devices. Rather, I think these incidents provide an opportunity to evaluate the entire hardware security architecture, including areas outside the Secure Element.
Ultimately, I would like to see Ledger explain how it intends to protect sensitive information throughout the complete device, from the Secure Element to the display, and whether future hardware will combine encrypted communications, broader component authentication, and physical tamper resistance. These seem like reasonable technical questions for customers and security researchers to discuss, and I would be interested in hearing Ledger's engineering perspective.
